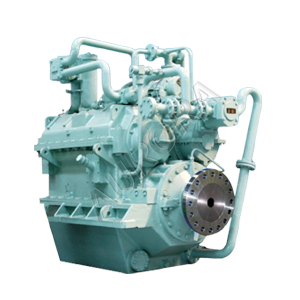

CGL60.66 NGC marine gearbox features two-stage reduction with coaxial input and output shafts, same rotation direction, and integrated clutch with reduction.Rated input speed is 400-1200 rpm, reduction ratio 2.01-6.12, and transmission capacity 3.261-9.913 kW/rpm. Manufactured by NGC Marine (Nanjing Accurate Marine Equipment Co., Ltd., NGC), it ensures efficient power transmission for a wide range of vessels.
CGL60.66 Scope of Supply
- Oil cooler
- Gear pump
- Filter
- Operating valve
- Two-stage control valve
- Monitoring meter
- Input flange
- Output flange
Technical Data of NGC Gearbox CGL60.66
| Input Speed (rpm) | Ratio | Transmission Capacity (kW/rpm) |
| 400-600 | 2.01 | 9.913 |
| 400-750 | 2.5 | 7.982 |
| 400-900 | 3.07 | 6.492 |
| 400-1050 | 3.57 | 5.581 |
| 400-1200 | 4.05 | 4.923 |
| 400-1200 | 4.48 | 4.448 |
| 400-1200 | 5.08 | 3.927 |
| 400-1200 | 5.51 | 3.622 |
| 400-1200 | 6.12 | 3.261 |
- Design & Function: Two-stage reduction with coaxial input and output shafts, same rotation direction, and integrated clutch with reduction.
- Shaft Arrangement: Input and output shafts are coaxial for compact installation and efficient power transmission.
- Thrust Capacity: Rated propeller thrust up to 540 kN.
- Dimensions: To be confirmed / as per drawing.
- Net Weight: Approximately 11000 kg.
Optional Configuration
- Control system options: Mechanical control, electrical control, or pneumatic control.
- Highly flexible coupling: Reduces torsional vibration and protects the drivetrain.
- Stand-by pumpset: Ensures reliable operation and system redundancy.
- Classification society compliance: Available with certification from major classification societies upon request.
