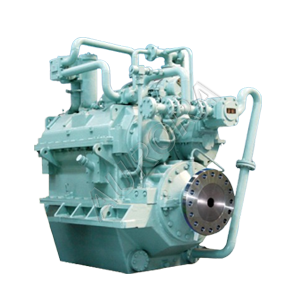

CGL32.35 NGC marine gearbox features two-stage reduction with coaxial input and output shafts, same rotation direction, and integrated clutch with reduction. Rated input speed is 400-1800 rpm, reduction ratio 2.06-6.08, and transmission capacity 0.480-1.417 kW/rpm. Manufactured by NGC Marine (Nanjing Accurate Marine Equipment Co., Ltd., NGC), it ensures efficient power transmission for a wide range of vessels.
CGL32.35 Scope of Supply
- Oil cooler
- Gear pump
- Filter
- Operating valve
- Two-stage control valve
- Monitoring meter
- Input flange
- Output flange
Technical Data of NGC Gearbox CGL32.35
| Input Speed (rpm) | Ratio | Transmission Capacity (kW/rpm) |
| 400-900 | 2.06 | 1.417 |
| 400-1150 | 2.54 | 1.148 |
| 400-1350 | 3.02 | 0.965 |
| 400-1580 | 3.58 | 0.816 |
| 400-1800 | 4.05 | 0.720 |
| 400-1800 | 4.59 | 0.635 |
| 400-1800 | 5.09 | 0.573 |
| 400-1800 | 5.57 | 0.523 |
| 400-1800 | 6.08 | 0.480 |
- Design & Function: Two-stage reduction with coaxial input and output shafts, same rotation direction, and integrated clutch with reduction.
- Shaft Arrangement: Input and output shafts are coaxial for compact installation and efficient power transmission.
- Thrust Capacity: Rated propeller thrust up to 115 kN.
- Dimensions: To be confirmed / as per drawing.
- Net Weight: Approximately 2240 kg.
Optional Configuration
- Control system options: Mechanical control, electrical control, or pneumatic control.
- Highly flexible coupling: Reduces torsional vibration and protects the drivetrain.
- Stand-by pumpset: Ensures reliable operation and system redundancy.
- Classification society compliance: Available with certification from major classification societies upon request.
