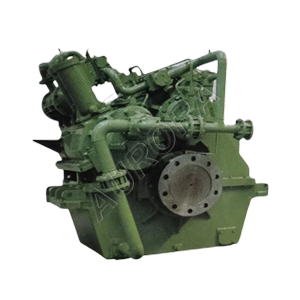

CGK30.32 NGC marine gearbox features single-stage reduction with vertical offset input and output shafts, opposite rotation direction, and integrated clutch with reduction. Rated input speed is 400-1800 rpm, reduction ratio 1.97-4.00, and transmission capacity 0.57 kW/rpm. Manufactured by NGC Marine (Nanjing Accurate Marine Equipment Co., Ltd., NGC), it ensures efficient power transmission for a wide range of vessels.
CGK30.32 Scope of Supply
- Oil cooler
- Gear pump
- Filter
- Operating valve
- Two-stage control valve
- Monitoring meter
- Input flange
- Output flange
Technical Data of NGC Gearbox CGK30.32
| Input Speed (rpm) | Ratio | Transmission Capacity (kW/rpm) |
| 400-1800 | 1.97 | 0.57 |
| 2.52 | ||
| 2.96 | ||
| 3.52 | ||
| 4.00 |
- Design & Function: Single-stage reduction gearbox with vertical offset input and output shafts, opposite rotation direction, and integrated clutch with reduction.
- Shaft Arrangement: Input and output shafts are vertical offset for compact installation and efficient power transmission.
- Thrust Capacity: Rated propeller thrust up to 100 kN.
- Dimensions: To be confirmed / as per drawing.
- Net Weight: Approximately 1300 kg.
Optional Configuration
- Control system options: Mechanical control, electrical control, or pneumatic control.
- Highly flexible coupling: Reduces torsional vibration and protects the drivetrain.
- Stand-by pumpset: Ensures reliable operation and system redundancy.
- Classification society compliance: Available with certification from major classification societies upon request.
