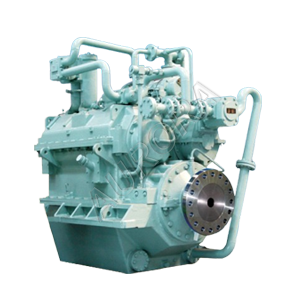

CGC70.82 NGC marine gearbox features two-stage reduction, coaxial input/output, and an ahead/astern reversing clutch, designed for reliable marine propulsion. Rated input speed is 300-950 rpm, reduction ratio 1.98-5.98, and transmission capacity 5.930-17.446 kW/rpm. Manufactured by NGC Marine (Nanjing Accurate Marine Equipment Co., Ltd., NGC), it ensures efficient power transmission for a wide range of vessels.
CGC70.82 Scope of Supply
- Oil cooler
- Gear pump
- Filter
- Operating valve
- Two-stage control valve
- Monitoring meter
- Input flange
- Output flange
Technical Data of NGC Gearbox CGC70.82
| Input Speed (rpm) | Ratio | Transmission Capacity (kW/rpm) |
| 300-450 | 1.98 | 17.446 |
| 300-600 | 2.5 | 14.053 |
| 300-700 | 2.96 | 11.533 |
| 300-800 | 3.49 | 10.061 |
| 300-900 | 3.95 | 8.900 |
| 300-950 | 4.47 | 7.873 |
| 300-950 | 4.94 | 7.120 |
| 300-950 | 5.49 | 6.470 |
| 300-950 | 5.98 | 5.930 |
- Design & Function: Two-stage reduction with coaxial input and output shafts, same rotation direction, equipped with ahead/astern reversing clutch and reduction function.
- Shaft Arrangement: Input and output shafts are coaxial for compact installation and efficient power transmission.
- Thrust Capacity: Rated propeller thrust up to 780 kN.
- Dimensions: To be confirmed / as per drawing.
- Net Weight: Approximately 23000 kg.
Optional Configuration
- Control system options: Mechanical control, electrical control, or pneumatic control.
- Highly flexible coupling: Reduces torsional vibration and protects the drivetrain.
- Stand-by pumpset: Ensures reliable operation and system redundancy.
- Classification society compliance: Available with certification from major classification societies upon request.
